Purpose
Proportion Integral Regulating Valve ZLVG-7000 series thread copper valve could be matched with ZLVA-7150 or ZLVA-3000 actuator, could regulate cool or heat water flow, is widely applied to control liquid for central air-condition, heating and water treatment system |
Material and technical data：
◆ Sealer of valve stem: Y gasket ring and O type combination, NBR rubber seal component, PTFE seal cover
◆ Valve stem: Stainless steel AISI304
◆ Valve plug: brass
◆ Other components are all in brass.
◆ Pressure-bearing:1.6MPa; service medium: water; liquid temperature: 1~95℃
◆ Connection manner: BSP parallel inner screw (BS21); flow characteristics: equal percentage ◆ Leakage amount：less than KV value 0.05% |
Installation and maintenance：
◆ Valve stem goes down to cut off the valve.
◆ Keep the pipe clean before installing valve, without oxide skin and metal sheet or other sundries.
◆ Make sure homocentric by connecting pipe and valve body, unaffected by vibration, flow direction shall be same as indication in the valve body.
◆ The actuator shall be install above valve body vertically, leave sufficient space for daily maintenance (such as disassemble actuator)
◆ Cut off or insulate power when make maintenance to valve, without pressure for water system. |
| Specification and technical data: |
|
Model |
Caliber mm |
Style |
Flow Coefficient Kv |
Max pressure difference MPa |
Stem travel mm |
|
ZLVG-7200-25 |
25 |
two-way |
8 |
1.0 |
23 |
|
ZLVG-7200-32 |
32 |
two-way |
16 |
0.75 |
23 |
|
ZLVG-7200-40 |
40 |
two-way |
25 |
0.5 |
23 |
|
ZLVG-7200-50 |
50 |
two-way |
40 |
0.3 |
23 |
|
ZLVG-7200-65 |
65 |
two-way |
63 |
0.2 |
23 |
|
ZLVG-7300-25 |
25 |
three-way |
8 |
1.0 |
23 |
|
ZLVG-7300-32 |
32 |
three-way |
16 |
0.75 |
23 |
|
ZLVG-7300-40 |
40 |
three-way |
25 |
0.5 |
23 |
|
ZLVG-7300-50 |
50 |
three-way |
40 |
0.3 |
23 |
|
ZLVG-7300-65 |
65 |
three-way |
63 |
0.2 |
23 |
|
|
| Model comparison table： |
| |
|
尺寸(m m) |
|
Model |
Connection screw |
A |
B |
C |
|
ZLVG-7200-25 |
G1" |
110 |
62 |
121 |
|
ZLVG-7200-32 |
G1 1/4" |
110 |
49 |
137 |
|
ZLVG-7200-40 |
G1 1/2" |
120 |
54 |
144 |
|
ZLVG-7200-50 |
G2" |
130 |
59 |
146 |
|
ZLVG-7200-65 |
G2 1/2" |
175 |
83 |
143 |
|
ZLVG-7300-25 |
G1" |
110 |
81 |
121 |
|
ZLVG-7300-32 |
G1 1/4" |
110 |
84 |
137 |
|
ZLVG-7300-40 |
G1 1/2" |
120 |
85 |
144 |
|
ZLVG-7300-50 |
G2" |
135 |
96 |
146 |
|
ZLVG-7300-65 |
G2 1/2" |
175 |
102 |
143 |
|
|
| Note: if the valve body dimension is changed, without further inform. |

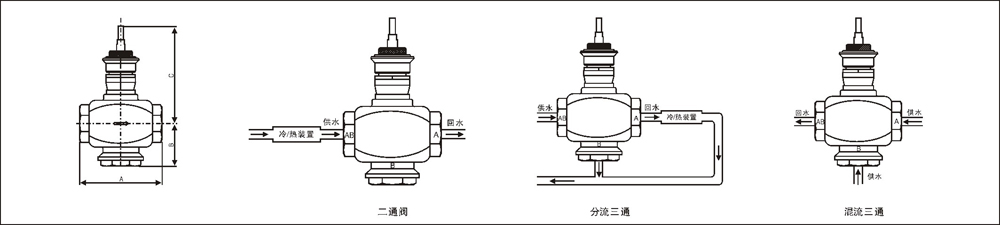

| Schematic diagram of the flow direction: |
 |
|
冷/热装置 Cool/heat equipment
供水 supply water
回水 return water
二通阀 two-way valve
供水 supply water
分流三通 Streaming three-way
混流三通 Mix three-way |
