| Proportion Integral Regulating Valve ZLVA-7150 Actuator |
|
 |
Purpose
Proportion Integral Regulating Valve ZLVA-7150 Series Actuator is straight route actuator, could be matched with ZLVG-7000 series valve body, as to achieve regulation function on pipe medium flow. Widely applied to air condition and heating system, could be also matched with different connector and other valves. |
Specification on type：
ZLVA-7150：floating type, built-in 24V/AC two-way reversible motor, accept switch type control signal, supply incremental control. |
Characteristics：
◆ Low AC pressure synchronous reversible motor, with function of hysteresis clutch protection.
◆ Adopt small size route limit switch.
◆ Inflaming retardant ABS engineering plastic cover
◆Valve position indicator
◆ Suitable for straight route regulating valve under 20mm
◆ No noise, with big output torque.
◆ Easy installation |
|

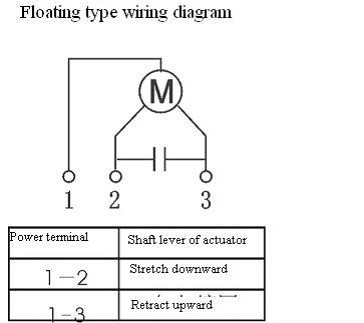

| Electric wiring diagram： |
 |
| Technical specification： |
|
Model |
ZLVA-7150 |
ZLVA-3000 |
ZLVA-3100 |
ZLVA-3102 |
|
Action／control |
Reversible, incremental control |
Proportional control, forward or reverse |
|
Motor type |
synchronous reversible motor with magnetic clutch |
|
Motor pressure |
24VAC，50/60Hz 5.5VA |
220V |
24VAC，50/60Hz 5.5VA |
|
Torque |
500 N |
l1000 N |
1000 N |
|
Material |
Reducer bracket: galvanized steel plate, bracket: die-casting aluminum,
shell: flame-retardant ABS Engineering Plastic
IP40 |
|
Environment Tem. |
Running：1℃ to +55℃ Storage：-20至65℃ |
|
Max relative humidity |
90% no condensation |
|
Accessory |
Lock nut, scale gauge, scale indicating apparatus, specification |
|
Control signal |
24\UAC |
24V/AC |
220\UAC |
DCO-10V or 4-20mA |
|
Feedback signal |
No. |
DC O-10V or 4-20mA | | |
|
|
|
