Summary
ZL-100 Series Temperature Controller is applied to control fan coil and electric control valve in the central air-condition system, keep the environment temperature constant within setting range. There is one manual three-speed fan switch, one cold/hot convert swtich and one general switch, set the room temperature through rotarying the printed dial. |
|
Controllable equipments:
Three-gear fan coil, three-wire electric valve, two-wire electric valve and switching valve. |
|
|
Technical data：
◆ Deviation: at 20 ℃, ≤ 1 ℃
◆ Working range :10-30 ℃
◆ Temperature accuracy: ± 1 ℃
◆ Temperature sensing element: inflatable diaphragm
◆ Material and color: milky white PC flame retardant engineering plastics of chassis and panel
◆ Rated voltage and current: 220VAC 2.5A
◆ Wire connection: terminals, accept max 1.5mm2 thick wire
◆ Transport and storage: temperature should be controlled between -20 ℃ to 50 ℃ during transportation and storage
◆ Installation: 86 type standard cassette
|
|

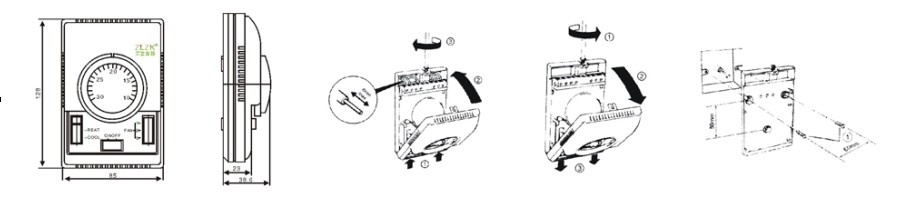

| Appearance dimension and installation diagram: ： |
|
 |
|

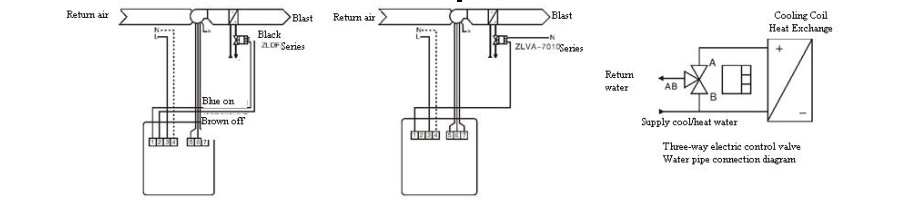

| Application figure on external standard fan coil: |
|
 |

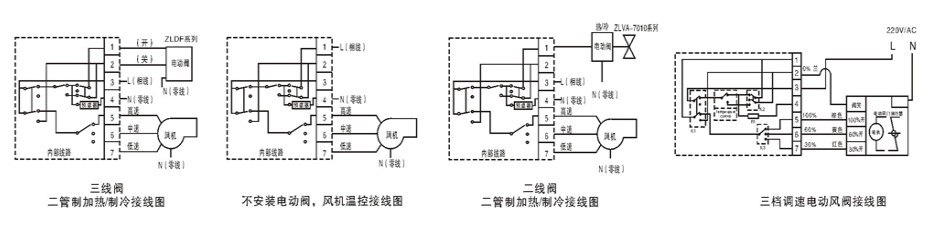

| Standard Electrical Connection Diagram： |
 |
|
图1 冷/暖二管制系统 Figure 1: Cool-heat two-pipe system
系统：system
风机：fan
冷水/热水：cool/heat water
风管：blast pipe
图3：单冷二管制系统 Figure 3: Cool two-pipe system
冷水阀 Cool water valve
图2：冷/暖二管制系统 Figure 2: Cool/heat two-pipe system
图4：冷/暖四管制系统 Figure 4: Cool/heat four-pipe system
冷水阀 Cool water valve
热水阀 Heat water valve
|
