| Electric two-way valve ZLSM-220 |
|
 |
|
Summary
ZLSM Series fan-coil electric valve is applied to on-off control for fan-coil water system. In need of work, the temperature controller will provide an open signal, enable the electric valve connect to the AC power, then start the valve, cool water or hot water enter into fan-coil, provide cool or warm air to the room; when the room temperature reaches to setting value, the temperature controller will cut off the electric valve, and the restoring spring will close the valve, so as to prevent the water enter into fan coil. Through the valve¡¯s open and close, keep the room temperature within setting range. This series electric valve could match with various temperature controllers, as to realize energy saving operation for air condition system. K type driver has built-in auxiliary switch, could control other equipments synchronously. |
|
Technical data£º
¡ô Driving voltage£º220VAC, 50Hz/60Hz (AC24V, 110V are available for choice)
¡ô Power consumption£º¡Ü7.5VA
¡ô Allowance pressure£º¡Ü0.15MPa
¡ô Pressure-bearing of valve body£º¡Ü1.3MPa
¡ô Temperature of applicable medium£º2¡æ-95¡æ
¡ô Applicable medium£ºcool water and hot water
¡ô Open and close time£ºabout 10 s for open£¬about 5 s for close ¡ô Applicable environment temperature£º0¡æ-60¡æ
¡ô Connection manner£ºZG internal pipe thread £¨could be custom made£© |
|
|
Main material:
¡ô Valve body: casting brass
¡ô Valve stem: copper alloy
¡ô Sealing material: special rubber
¡ô Driver chassis: stainless steel, engineering plastic ¡ô Driver cover: aluminum alloy |
Notice on installation:
¡ô Normally closed two-way valve and split three-way valve shall be installed according to figure 1, 2 and 3. The compression release valve shall be applied to the bottom branch pipe for tall building.
¡ô The motor housing should prevent drop permeate. When install the valve, the driver shall not be installed under pipe.
¡ô When the valve is installed in the vertical pipe, the motor shell must prevent drops permeate.
¡ô Manual lever: when move the lever to the arrow direction slowly and press the loophole, the valve is on open status. When the current electrifies the electric valve, the manual lever will be reset to automatic position.
¡ô Install the electric valve horizontally; the motor should be above the valve body.
¡ô Water flow direction shall be same as arrow in the valve body.
¡ô Note: the driver shall not be the force pivot while installing. |
| Model comparison table: |
|
Title |
Model |
Aperture Parameter |
Pressure Difference on Close |
Dimension (mm) |
|
A |
B |
C |
D |
|
Two-way valve |
ZLSM-215 |
1/2" |
DN15 |
0.15MPa |
87 |
81 |
60 |
100 |
|
ZLSM-220 |
3/4" |
DN20 |
0.15MPa |
87 |
81 |
60 |
100 |
|
ZLSM-225 |
1" |
DN25 |
0.08MPa |
87 |
85 |
60 |
100 |
|
Three-way valve |
ZLSM-315 |
1/2" |
DN15 |
0.15MPa |
87 |
85 |
60 |
100 |
|
ZLSM-320 |
3/4" |
DN20 |
0.15MPa |
87 |
92 |
60 |
100 |
|
ZLSM-325 |
1" |
DN25 |
0.08MPa |
87 |
92 |
60 |
100 | |

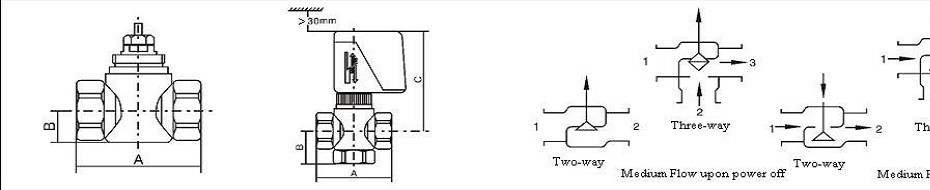

| Appearance and dimension: |
 |

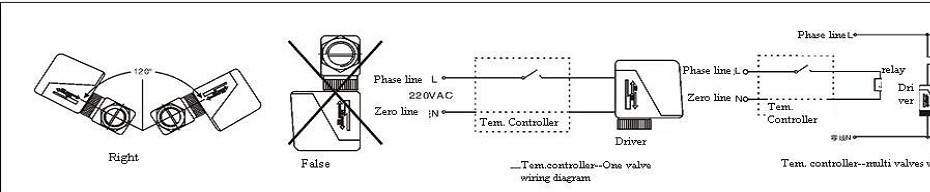

| Assembly Sketch: |
 | |
|
|
|
